Gauge sets live a hard life -- dropped off ladders, left in a truck bed through a Texas summer, cross-threaded at a hose fitting in the dark. A manifold gauge set is the one tool you're touching on every single call, so the difference between a $70 set and an $800 set isn't marketing -- it's whether the readings still hold up after eighteen months of daily abuse, and whether the thing even supports the refrigerant you're charging in 2026.

That last part matters more than it used to. With R-454B and R-32 (both mildly flammable A2L refrigerants) showing up on more new install and retrofit jobs every quarter, some of the classic mechanical gauge sets techs have trusted for a decade simply don't have the pressure scales or approvals for A2L work. We called that out below wherever it's actually relevant -- don't assume every gauge set on this list is A2L-ready just because it's new to you.

We mixed analog and digital here on purpose. Analog mechanical gauges are dead simple, need no batteries, and a good one will outlive your truck. Digital manifolds cost more but hand you superheat/subcool math, data logging, and readings you can actually see in direct sunlight without squinting at a needle. Both have a place in a tech's bag.

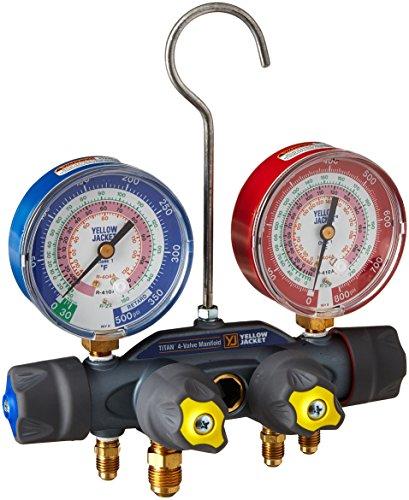

Yellow Jacket 49963 Mechanical Manifold Gauge Set, 4-Valve
Best Value / Manifold Only

Yellow Jacket 49963 Mechanical Manifold Gauge Set, 4-Valve

A no-frills TITAN 4-valve manifold body with gauges -- no hoses included -- for the tech who just needs to replace a cracked gauge set without paying for accessories they already own.

$179.02

View on Amazon

This is the manifold body alone -- forged aluminum alloy, 3-1/8" gauges, no hoses in the box. That sounds like a downside until you realize it's exactly what a lot of techs actually need: your hoses are still fine, but the gauge glass cracked or a handwheel seized, and you don't want to pay for a fourth set of hoses you're just going to throw in a drawer. The gauges are easy to read, and the handwheels are easy to work with gloves on.

Field-use note: because there are no hoses, you're reusing your old set (or buying hoses separately), so factor that into the real cost before you assume this is the cheap option. The main drawback is refrigerant scope -- this one is scaled for R-22/404A/410A and isn't labeled for A2L blends like R-454B or R-32, so if you're doing much new-construction or retrofit work this year, don't rely on it as your only set.

Best for: techs who already have a good hose set and just need a reliable, no-nonsense replacement gauge body, or anyone building a second/backup manifold for the truck.

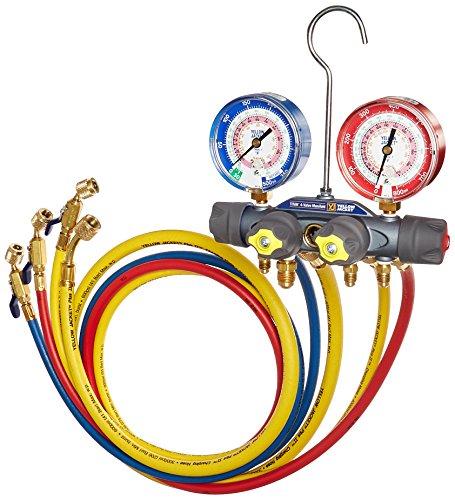

Yellow Jacket 49968 Titan 4-Valve Test and Charging Manifold
Best Analog

Yellow Jacket 49968 Titan 4-Valve Test and Charging Manifold

The complete Titan analog kit -- gauges, ball-valve hoses, and a hanging hook -- built to survive years of being tossed around a service van.

$302.62

View on Amazon

This is the set to hand a new tech on day one. The forged body and 3/8" bores move refrigerant fast during evacuation and charging, and the compact ball-valve hose ends seal without the drama of older flare-style connections -- less cross-threading, fewer slow leaks at the fitting. The gauge faces stay legible even after they've picked up a season of grime, and most techs only replace a set like this when the glass finally cracks.

Durability observation: the forged body is built to take drops onto concrete that would finish off a digital unit. No batteries, no firmware, no Bluetooth pairing screen freezing up on a rooftop in July. The honest drawback is the one every mechanical gauge shares -- you're doing your own superheat/subcooling math on a phone app or a slide chart instead of having it calculated for you, and like the 49963 above, this is an R-22/404A/410A set, not an A2L-rated one, so it's not the gauge to reach for on an R-454B system.

Best for: technicians who want a manifold that will still work the same way in ten years, and who don't mind doing their own superheat and subcool math.

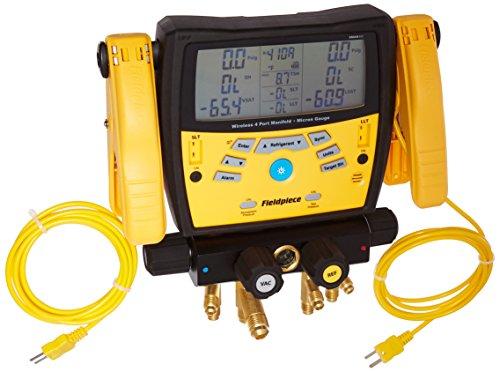

Fieldpiece SM482V Wireless 4-Port SMAN Refrigerant Manifold with Vacuum Gauge
Best Overall / Best Digital

Fieldpiece SM482V Wireless 4-Port SMAN Refrigerant Manifold with Vacuum Gauge

Fieldpiece's current 4-port digital manifold with a built-in vacuum gauge, superheat/subcool on screen, data logging, and a temperature-compensated tightness test.

$797.05

View on Amazon

This is the digital manifold to buy if you're going to own one. It reads low and high side pressure and calculates superheat and subcooling on the spot, and the built-in vacuum gauge means one less accessory to dig out of the bag when you're pulling a deep vacuum. The four-valve body gives you a dedicated vacuum port, which speeds up evacuation on bigger systems.

The features that separate it from cheaper digital sets are the ones you notice on callbacks: data logging so you can prove what the system was doing when you left, and a temperature-compensated system tightness test, so a standing pressure test isn't thrown off by the sun coming around to that side of the house. The thermocouple jacks are protected, and it connects with Fieldpiece's Job Link probes if you already run them.

Drawbacks: at roughly $800 it's the most expensive set here, and a digital manifold is never going to shrug off a drop the way a forged analog body does -- keep it in its case. If $800 is too much, Fieldpiece's 3-port SM382V (around $600) keeps most of the same features without the fourth valve.

Best for: full-time service techs who want pressures, temps, vacuum, and documentation in one tool and are charging a mix of R-410A and newer equipment.

Testo 550s Smart Digital Manifold Kit with Temperature Clamp Probes
Best for App Connectivity

Testo 550s Smart Digital Manifold Kit with Temperature Clamp Probes

A 2-valve smart digital manifold that supports A2L refrigerants, calculates superheat and subcooling through the testo Smart app, and sends readings straight to your phone.

$414.00

View on Amazon

Testo builds instruments, not just gauges, and the 550s is the easiest way into a current-generation, A2L-capable digital manifold without spending Fieldpiece SM-series money. Testo lists support for the common refrigerants plus A2Ls, a pressure range of -15 to 870 psi, and accuracy of plus or minus 0.5% of full scale on pressure.

The real selling point is the testo Smart app. It handles the superheat and subcool math, and lets you document a job and send the results from your phone instead of copying numbers onto a work order by hand. For techs who have to hand customers or a service manager a record of every call, that saves real time.

Drawbacks: it's a 2-valve body, so you lose the dedicated vacuum and charging ports you get on a 4-valve manifold, and you'll want a separate micron gauge for evacuations. And like any app-centered tool, it's only as good as your phone's battery and signal on the roof.

Best for: residential techs who want an A2L-ready digital manifold with built-in reporting at a mid-range price.

Elitech DMG-2SE HVAC Digital Manifold Gauge Set with Hoses and R410A Adapters
Best Budget Digital

Elitech DMG-2SE HVAC Digital Manifold Gauge Set with Hoses and R410A Adapters

A complete budget digital manifold kit with hoses, a built-in library of 88 refrigerants, and automatic PT calculations so you stop flipping through charts.

$69.99

View on Amazon

At under $70 with hoses included, this is the cheapest way to get digital readings and automatic PT lookups. Elitech lists 88 refrigerants in its library, which covers far more than an apprentice or a homeowner servicing their own equipment is likely to run into. Auto shut-off saves batteries on long calls, and a data hold button freezes the reading so you can look at it after you climb down.

Drawbacks: this is a budget tool, and it's priced like one. Don't expect the build quality, probe accuracy, or long-term durability of a Fieldpiece or Testo, and confirm the refrigerant you're charging is on its list before relying on it for A2L work. It also lacks a built-in vacuum gauge.

Best for: apprentices, techs who want a cheap backup digital set for the truck, and anyone who isn't ready to spend $400+ on a first digital manifold.

Bottom Line

If you can only buy one set from this list, make it the Fieldpiece SM482V -- it does the most and covers pressure, temperature, vacuum, and documentation in a single case. But "best overall" isn't "best for everyone." A tech who mostly services older R-410A residential systems and hates charging batteries is genuinely better served by the Yellow Jacket 49968's analog simplicity, and a tech who wants A2L support and app reporting for about half the Fieldpiece price should look hard at the Testo 550s.

Recommendations by use case

  • New tech building a first toolbox: Yellow Jacket 49968 -- analog, durable, nothing to break.
  • Daily service work, want superheat/subcool and vacuum in one tool: Fieldpiece SM482V.
  • Want A2L support and app-based reporting at a mid-range price: Testo 550s.
  • Tight budget, want digital readings anyway: Elitech DMG-2SE.
  • Just replacing a cracked gauge body, keeping your existing hoses: Yellow Jacket 49963.
  • Heavy R-454B/R-32 A2L work: skip the analog Yellow Jacket sets for those jobs -- use an A2L-capable digital manifold like the Testo 550s or a current Fieldpiece SM-series.
